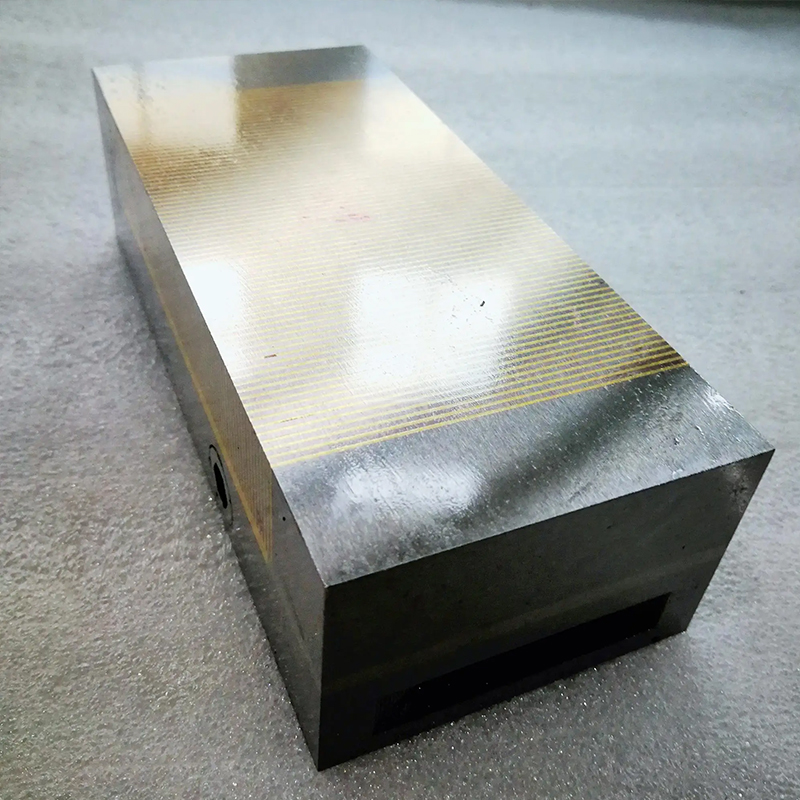

Fine Pole17.71x5.9 Inch Self-Centering Lathe chuck Permanent Magnetic Chuck For Grinding Machine

Product Description

Product Name Fine Pole 17.71x5.9 Inch Permanent Magnetic Chuck For Grinding Machine
Material Copper, Steel, NdFeB magnet
Size 450x150x53 mm
Pole distance 1+3 mm
Suction 100-120N/cm2
Application For surface grinder, tool grinder, EDM and other applications.

*We can also design according to your requirements if the specific size is not available on our website or catalogue.

Instruction

Put the work piece on the suction table, and then insert the wrench into the shaft hole to turn clockwise 180°, the work piece can be sucked for processing.

The work piece is completed, the wrench can be inserted into the shaft hole to turn counterclockwise 180°, you can remove the work piece.

Features:

1. Sealed against dirt and liquid.

2.Removable handle.

3. Handle moves easily to turn chuck on and off.

4. Use powerful Rare Earth Neodymium Magnets inside.

5.Very fine spacing, uniform magnetic distribution, particularly for processing small thin parts.

6.Worktable precision no change while magnetizing and demagnetizing.

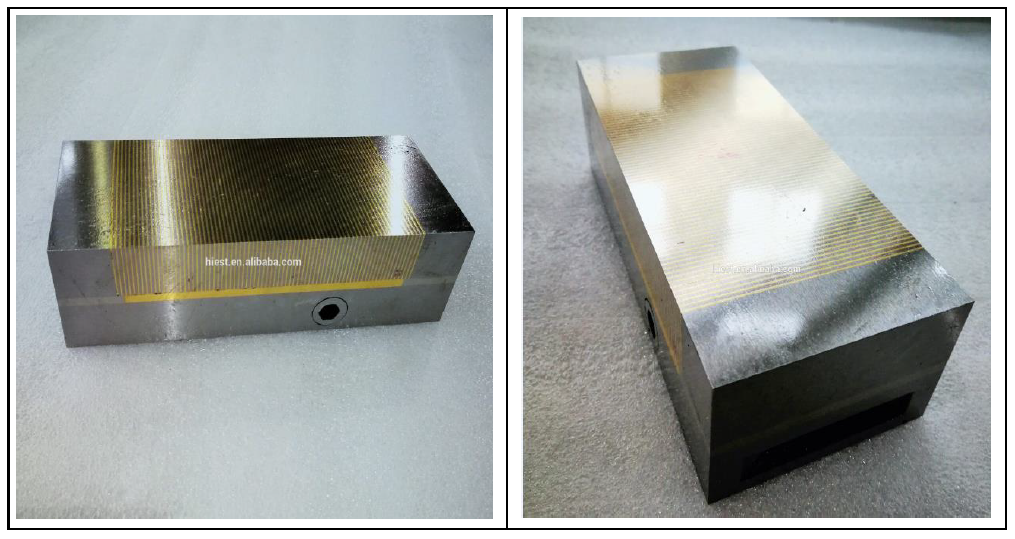

Products Show

.png

Application

The magentic chuck can be uesed for processing various magnetic conduction work pieces.

For surface grinder, tool grinder, EDM and other applications.

Thin and light weight work piece are ideally suitable because of fine-pitched magnetic poles.

Maintenance:

1.Use of ambient temperature: -40-50.

2. Itshould be wiped clean before use to avoid scratching the surface, after using, the surface should be coated with oil to prevent corrosion.

3. Do not knock, to prevent magnetic reduction.

Company Information

We are a manufacturer,our factory covers an area of 40,000 square meters. We own 120 employees including 11 technicists and 8 QC. We are a new factory founded in Year 2014, but our team focus on the magnetic technology over 20 years. And also our company is a National high-tech enterprise which own 10 patents for invention.
