Home > MAGLAND > Lift > Magnet Lifter

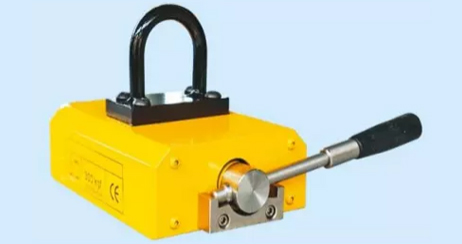

Permanent Magnetic Lifter has strong magnetic path produced by NdFeB magnetic materials.The magnetic switch is controlled by rotating the handle. Rotate the handle to the”ON” position so that it can hold the loads. It has the characteristic of using no electricity, small volume, light weight, great holding force, easy and safe operation, constant magnetic force.
Magnetic lifter is used for holding and releasing objects by controlling magnetic circuit switch through handle in virtue of the strong magnet generated by the magnetic circuit system made of strong NdFeB material. It consumes no power and could bring permanent magnetic force with the characteristics of use safety, small volume, light weight, large holding force and easy operation.
Place of Origin: |
China |
Brand Name: |
No |
Model Number: |
No |
Certification: |
CE, RoHs, Reach |
Minimum Order Quantity: |
1 |
Price: |
$45-$1200 |
Packaging Details: |
Carton box and wooden case |
Delivery Time: |
35 days |
Payment Terms: |
100% in advance (Can be discussed) |
Supply Ability: |
1,000pcs per month |
 |
 |
||||||||

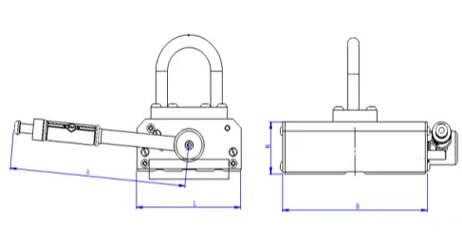

| Model | Rated lifting strength (kgf) | Cylindrical lifting strength(kgf) | Max.pull-off strength(kgf) | L(mm) | B(mm) | H(mm) | R(mm) | Operation temperature(℃） | Dead weight (kg) |
| HCYQ100H | 100 | 50 | 350 | 75 | 90 | 50 | 148 | <80 | 4 |
| HCYQ200H | 200 | 100 | 700 | 110 | 125 | 55 | 148 | <80 | 6.5 |
| HCYQ300H | 300 | 150 | 1050 | 132 | 162 | 60 | 180 | <80 | 9.5 |
| HCYQ600H | 600 | 300 | 2100 | 163 | 233 | 74 | 185 | <80 | 23 |
| HCYQ1000H | 1000 | 500 | 3500 | 190 | 300 | 85 | 210 | <80 | 58 |
*We can also design according to your requirements if the specific size is not available on our website or catalogue.
1. Long lift: The magnetic force is permanent, can always hold the objects.
2. CE Certificated.
3. No power needed.
4. Easily operation, one person operate.
5. 3.5 times safety ratio.
6. Safety locked.
7. V-slot under the bottom, can hold the block steel and also the cylindrical steel.
